Set of 2 Left/Right speaker brackets OR a full set of 3 brackets which further includes the Center-dash speaker bracket (please choose 2 OR 3 brackets from “Locations” when ordering).

Left/Right brackets are 3mm thick and Center-dash bracket is 4mm thick. All brackets are made of PETG.

The brackets have been tested for installation of 4” Infinity Reference REF-4032cfx car speakers in the Tesla Model 3 front dash area. They fit the new speakers onto the stock locations and work with all 3 stock locations.

Your order will include:

• 2 speaker brackets for Left/Right only speaker installation, OR 3 brackets for Left/Right and Center-dash speaker installation

• zip ties for drill-free installation (2 zip ties needed per bracket)

• a roll of neoprene foam for lining the bottom of each bracket

Please see our installation videos page for step-by-step installation instructions.

Please Note: the 2 Left/Right speaker brackets must be installed with the Audioliphe logo facing DOWN. The logo should NOT be visible when you have installed the bracket. We realize that this is counter-intuitive, but it is currently our best solution to the challenge of 3D printing such a small detail as our logo.

We appreciate your understanding!

Drill-free design:

These brackets were designed to allow for easy “drill-free” installation.

The drill-free design is built to use small zip-ties for the tabs to hold the 2 screw locations on the Infinity speaker that do not correspond to screw holes on the Tesla. The other 2 screw holes correspond exactly and do not require external attachment. Alternatively, you can epoxy the speaker to the bracket and then just screw the bracket down.

Either way, you will not need to drill any holes to secure the speaker at all mounting points!

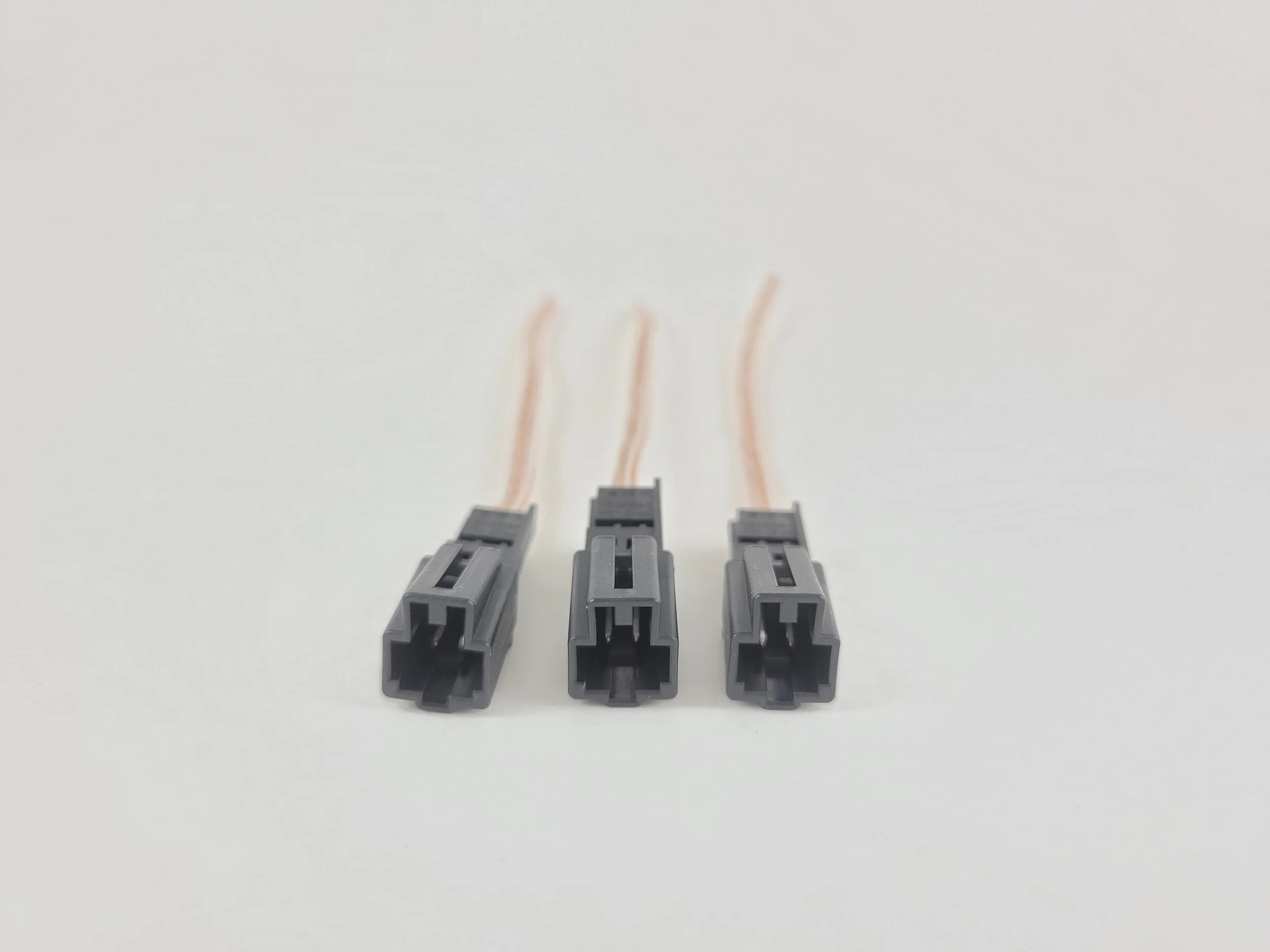

Set of 2 or 3 plugs and wires—enough to install 2 or 3 mid-range speakers (Please choose “Number in Set” when ordering).

Designed to install any speaker to the stock connection in the Model 3. Will require soldering to your speaker leads. The plugs are TE parts and the striped wire is Negative. I do not crimp a blade on the wires anymore because you will need to solder it regardless of the speaker you are using. *Note: the white striped wire is negative.

• Wires are 24-gauge Copper speaker wire.

• Plug is TE standard model obtainable at Mouser.com

Set of 2 Door speaker brackets OR a full set of 3 brackets which further includes a third bracket for the Center-dash tweeter (please choose 2 OR 3 brackets from “Locations” when ordering).

All speaker brackets are made from PETG.

Your order will include:

• 2 speaker brackets for Door-only speaker installation, OR 3 brackets for Door and Center-dash speaker installation

• a roll of neoprene foam for lining each bracket

Please see our installation videos page for step-by-step installation instructions.

Drill-free design:

These brackets were designed to allow for easy “drill-free” installation.

These brackets have been tested to install the Focal TWU 1.5 Integration Tweeters. These are also the same tweeters included in Focal’s Integration series component speaker systems, such as the ISU-200. They fit the new speakers into the stock locations and work with all 3 stock locations.

The design is to match exactly the original speaker dimensions, and provide mounting space for the Focal tweeters with simple vinyl tape or foam padding. The door tweeters have no screws as the original tweeter snaps into place. The center dash location uses the two existing screws from the stock installation.

You will not need to drill any holes, and will only need vinyl electrical tape for padding and grip.

THESE ARE IN LIMITED SUPPLY

Set of 2 or 3 plugs and wires: enough to install the 2 door-tweeters OR all three tweeters which further includes the center-dash speaker (Please choose from “Locations” when ordering).

Note: the 2 black plugs are for the door tweeters, and the 1 teal/blue plug is for the center-dash tweeter. The white striped wire is negative.

Designed to fit the factory plugs to install Tweeters into the Tesla Model 3 dash and door locations. The plugs are made from Tyco Electronics plugs and pins. I have also recently found and been able to procure the correct center tweeter plug, which is an obscure design difficult to find in the US. One will be included for the center if you order all three tweeter cables.

• Wires are 24-gauge Copper speaker wire.
